[Below Deck: MF-DF]

Compact furling system for below-deck installation

The manual furling systems of the MF series are the continuation of a long tradition of reliable and well-engineered furling systems. Building on more than 30 years of experience with our manual furling systems, this product shows the continuation of both our technical and optical principles:

We have also developed a below-deck version of the MF plant. This allows plants designed by other manufacturers to be conveniently installed in the installation room at a later date.

#Grafik

[Features]

Integrated Length Adjustment

Integrated Length Adjustment

The MF range furling systems offer the possibility of adjusting the length of the stay. The tensioner is located in the transition area from the drum for profiles. This means that systems mounted below deck can allow for a simple installation of forestay lengths.

Stainless Steel Drum Guard

Stainless Steel Drum Guard

The elegant stainless steel drum protection cage prevents the reef line from slipping. It also protects the furling system from damage.

Halyard Swivel FS

Halyard Swivel FS

The Reckmann high-performance halyard swivels turn with extremely low amounts of friction, thereby guaranteeing a secure operation without twisting the halyard. The compact design and size graduation ensure a low weight aloft.

Further details


[Facts]

    MF-1DF/R10 MF-1DF/R20 MF-2DF/R20 MF-2DF/R30 MF-3DF/R40 MF-3DF/R50
halyard swivel [-] FS-1 FS-2 FS-2 FS-3 FS-4 FS-5L
furling foil [-] R10 R20 R20 R30 R40 R50
wire diameter [mm] 6, 7, 8 8.10 10 12,14 14, 16 on request
rod sizes [-] 8, 12 12, 22 17, 22 22, 30, 40 30, 40, 48 on request
stroke stay adjuster [mm] 60 60 60 60 80 80
max. headstay length [m] 15,6 20,1 20,1 24,75 27,9 36,9
see dim sheet for further details

[Furling Sections]

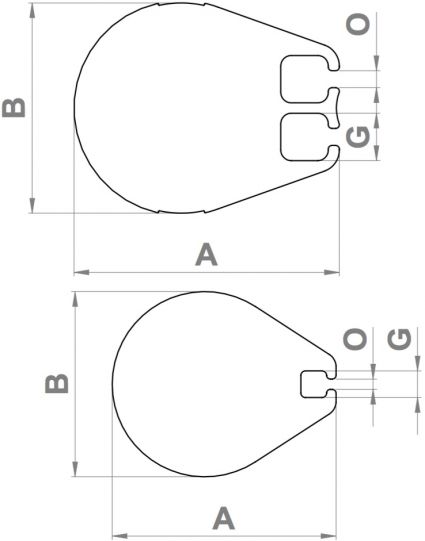

Aluminium profiles

  Groove G [mm] O [mm] A [mm] B [mm]
R10 double 6,4 2,3 31,4 24,1
R20 double 6,4 2,3 35,8 28,8
R30 double 7,5 3 45,5 36,1
R40 double 7,5 3 49,1 38,7
R50 double 8 3,5 54 42
R5 double 7,5 3,5 60 47
R6 double 7,5 3,5 72 60
R7 double 7,5 3,3 85 72
R8 single 8 3,2 107 93
Aluminium profiles

Carbon profiles

  G O A B
  [mm] [mm] [mm] [mm]
S2 7,2 2,8 38,5 29
S2.5 7,2 2,8 41,3 32,2
S3 7,2 2,8 49 38,5
S4 7,2 2,8 55,4 44,4
S4.5 7,2 2,8 60 50,8
S5 7,2 2,8 67,1 56,6
S5.5 7,2 2,8 72,8 62,7
S6 7,2 2,8 82 71,5
S6.5 7,2 2,8 86,9 76,2
S7 large 10 3,8 97,3 81,3
S7 small 7,2 2,8 91,3 81,3
S7.5 10 3,8 107,25 90,2
S8 10 3,8 112 97,3
S8.5 10 3,8 122 107,5
S9 13,02 5,01 148,2 132
S9.5 13,02 5,01 170,6 154
Carbon profiles

[Downloads]

MF Flyer

Download: MF_Flyer_EN.pdf

Dimension Sheet

Download: Massblatt-MF-xDF-EN.pdf

Specification Sheet MF-x DF

Download: Specsheet_MF-1-bis-MF-3-DF.pdf

Specification Sheet MF-3 DF R50

Download: Specsheet_MF-3-DF-R50-.pdf

Manual MF-x DF, Wire & Rod, Aluminium Foils

Download: MF-x_DF_R_10-40_ENG.pdf
