[Electric Pump Systems]

Electric pumps and valves

Reckmann offers systems for operating rigg hydraulic cylinders that are customised for the project requirements. The pumps that were developed especially for this use are extremely compact and powerful at the same time.

We would be happy to submit a concept customised for your requirements profile.

Picture Picture Picture Picture Picture Picture Picture

[HPS-200 Scheme]

#Grafik

[HPS-400 Scheme]

#Grafik

[Electric Pump Systems]

model   HPS-200-PP/12 V HPS-200-PP/24 V HPS-400-PP/12 V HPS-400-PP/24 V
article code   26604 26604 26607 26607
pump [cc/min] 2 stage 2 stage 2 stage 2 stage
flow 1st stage [cc/min] 1200 2000 2400 4000
flow 2nd stage [cc/min] 260 500 520 1000
height [mm] 326 326 326 326
width [mm] 241 241 333 333
depth [mm] 167 167 167 167
weight [kg] 4,4 4,4 10 10
voltage [V] 12 24 12 24

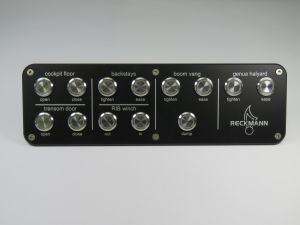

[Control Units]

model HPS-200-CPE HPS-200-CPEB HPS-200-CPES HPS-200-CPEC
article code 26513 26518 26519 on request
face plate clear black stainless steel carbon
functions 4 4 4 4
trim push button push button push button push button
ease manual manual manual manual
function selection manual manual manual manual
Control Units
