[Electric above-deck furling system: EF90]

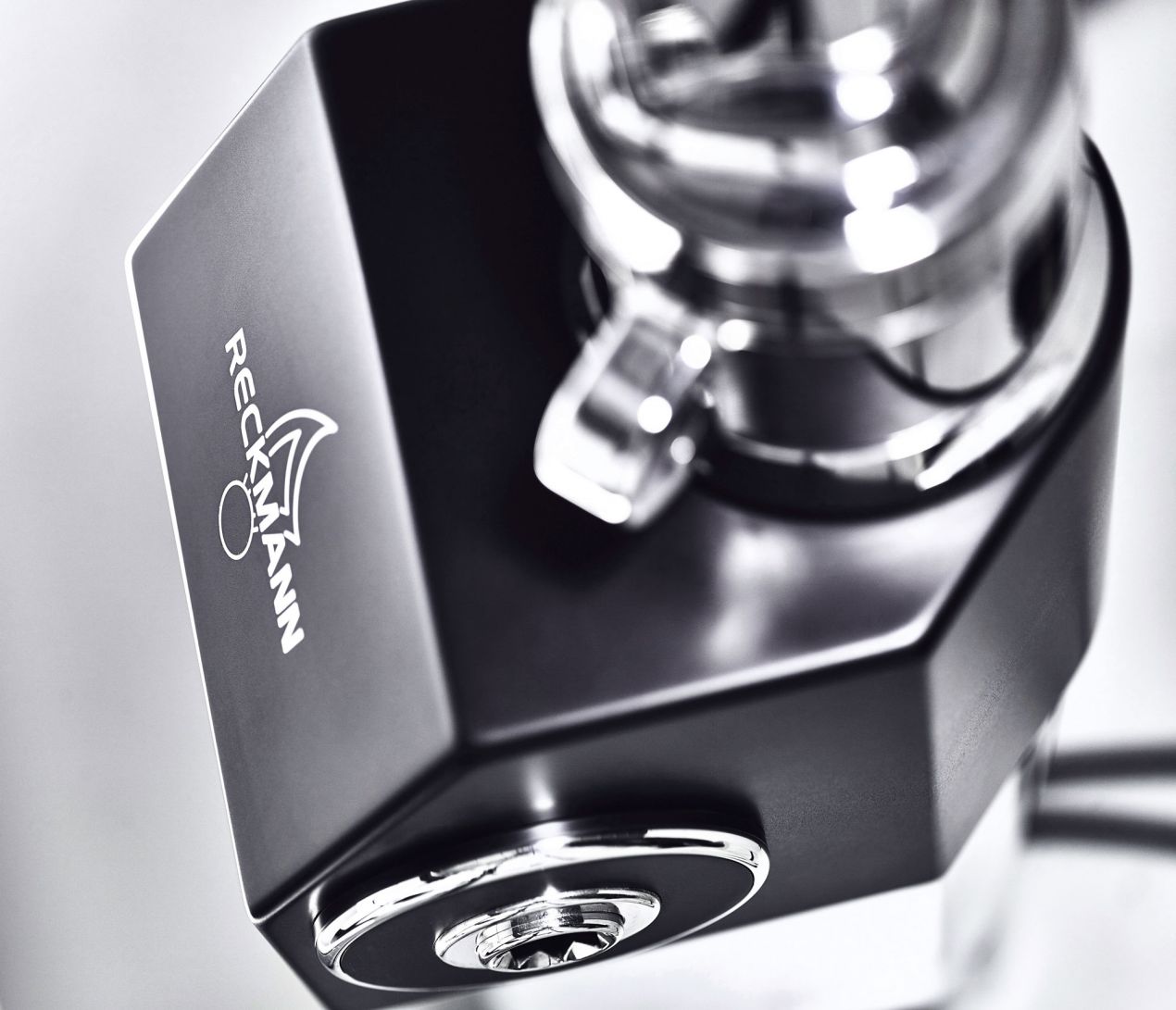

With the electric EF 90 reefing systems, trend-setting design and peak efficiency are combined in an overall high-capacity system. They are designed for yachts of approx. 36-70 foot in length and for wire forestays from 8 to 16 mm in diameter (alternatively rods -12 to -76). A newly developed gear technology and sophisticated bearing technology lend the smooth running EF 90 an unprecedented functionality. With respect to construction, the self-braking worm gear is nearly maintenance free.

Comforting to know that in emergency situations it is easy to switch over to manual operation. In order to guarantee secure and simple operation, loads from the sail are completely absorbed and hence cannot affect the winch handle. The integrated length adjustment is likewise easy to operate and works even with tacked sail.

The technical equipment and the exclusive use of top value materials make this an overall valuable and durable system, tailored to the requirements of ambitious yachtsmen.

The system sizes EF90-2 and EF90-3 guarantee high performance and top efficiency in simple and comfortable operation on 36-foot boats as well as larger yachts.

Picture Picture

[Features]

Emergency Manual Backup

Emergency Manual Backup

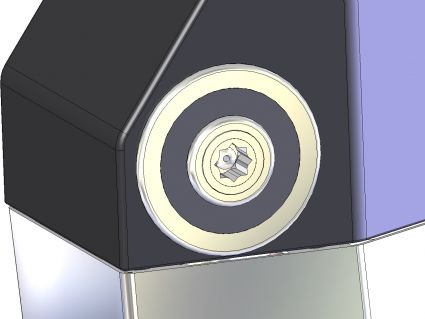

The unique manual drive ensures the greatest possible level of security. By simply inserting a standard winch handle, the electric drive will disconnect and switch to manual operation. Due to this special gear mechanism that prevents sail forces from transferring to the winch handle, the reefing system can be safely and easily operated, even when in manual mode.

Integrated Length Adjustment

Integrated Length Adjustment

The integrated length adjustment is easy to use and works even when the sail is bent. This means that rigs and sails can be trimmed exactly.

Tack Swivel Ring Bearings

Tack Swivel Ring Bearings

The furler tack swivel rings have a double axial bearing. This means that even heavy loads can be carried reliably. In order to avoid point loading on the bearings, loads are distributed using distribution plates over the whole bearing.

Halyard Swivel FS

Halyard Swivel FS

The Reckmann high-performance halyard swivels turn with extremely low amounts of friction, thereby guaranteeing a secure operation without twisting the halyard. The compact design and size graduation ensure a low weight aloft.

Further details

Chainplate Pin

Chainplate Pin

This new development from Reckmann means there is no need for a toggle. The compact design makes it possible to save on toggle length. The design can be integrated, load-optimised, into carbon fibre structures.

Tack Slider

Tack Slider

The tack slider or floating tack swivel allows the sail luff to be tensioned independently of the stay. This is a necessary addition, specifically with sails that have a halyard lock.

Carbon Foils

Carbon Foils

Our carbon profiles offer high resistance and low weight at the same time. A weight reduction of 50-60 % in comparison with conventional aluminium profiles means that there is a significant improvement in performance.

Connection Components

Connection Components

All electric Reckmann furling systems are shipped with a complete set of required connection components.


[Facts]

#Grafik
  EF90-2 EF90-3
A [mm]* 475 602
B [mm] 128 153
C [mm] 155 195
D [mm] 310 391
G [mm]* 342 452
stroke [mm] 70 70
weight [kg] 22 32
aluminium foils R20 R30 R40 R50
carbon frofile S2 S2.5 S3 S4/S4.5
max. rod size -17 -30 -48 -60
max. wire [mm] 10 12 14 16
max. headstay length [m] 18 23 27 31
* adjuster in mid position
furling system max. headstay length  [m] foil halyard swivel for wire up to [mm] for rod up to article code
EF90-2 14,2 R20 FS-2 10 -17 on request
EF90-2 15,7 R20 FS-2 10 -17 on request
EF90-2 17,2 R20 FS-2 10 -17 on request
EF90-2 18,7 R20 FS-2 10 -17 on request
EF90-2 18,7 R30 FS-3 12 -30 on request
EF90-2 20,2 R30 FS-3 12 -30 on request
EF90-2 21,7 R30 FS-3 12 -30 on request
EF90-2 23,2 R30 FS-3 12 -30 on request
EF90-3 20,4 R40 FS-4 14 -48 on request
EF90-3 21,9 R40 FS-4 14 -48 on request
EF90-3 23,4 R40 FS-4 14 -48 on request
EF90-3 24,9 R40 FS-4 14 -48 on request
EF90-3 26,4 R40 FS-4 14 -48 on request
EF90-3* 30,9 R50 FS-5 16 -76 on request
EF90-3* 33,9 R50 FS-5 16 -76 on request
* max. boat length: 78ft

[Furling Sections]

Aluminium profiles

  Groove G O A B
    [mm] [mm] [mm] [mm]
R10 double 6,4 2,3 31,4 24,1
R20 double 6,4 2,3 35,8 28,8
R30 double 7,5 3 45,5 36,1
R40 double 7,5 3 49,1 38,7
R50 double 8 3,5 54 42
R5 double 7,5 3,5 60 47
R6 double 7,5 3,5 72 60
R7 double 7,5 3,3 85 72
R8 single 8 3,2 107 93
Aluminium profiles

Carbon profiles

  G O A B
  [mm] [mm] [mm] [mm]
S2 7,2 2,8 38,5 29
S2.5 7,2 2,8 41,3 32,2
S3 7,2 2,8 49 38,5
S4 7,2 2,8 55,4 44,4
S4.5 7,2 2,8 60 50,8
S5 7,2 2,8 67,1 56,6
S5.5 7,2 2,8 72,8 62,7
S6 7,2 2,8 82 71,5
S6.5 7,2 2,8 86,9 76,2
S7 large 10 3,8 97,3 81,3
S7 small 7,2 2,8 91,3 81,3
S7.5 10 3,8 107,25 90,2
S8 10 3,8 112 97,3
S8.5 10 3,8 122 107,5
S9 13,02 5,01 148,2 132
S9.5 13,02 5,01 170,6 154
Carbon profiles

[Downloads]

EF90 Flyer

Download: EF90_Flyer_EN.pdf

Dimension Sheet

Download: Reckmann_RF90-EF90_dimsheet.pdf

Specification Sheet

Download: Reckmann_EF90_spec_incl_R5.pdf
